Vòng bi một chiều
Created with Pixso. FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62

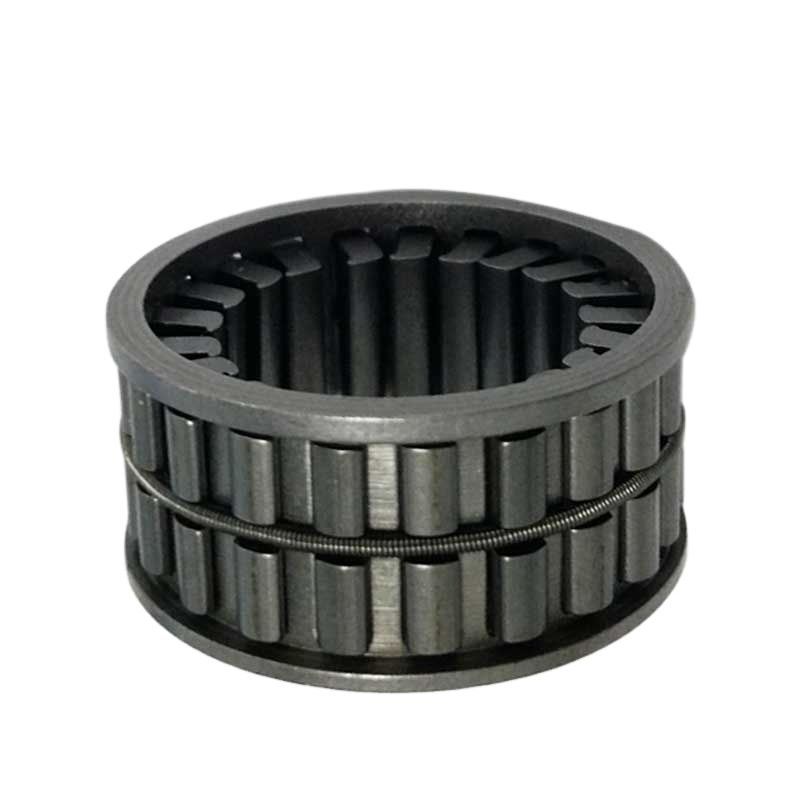

FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62

Brand Name: SUMA
Model Number: FE448Z
MOQ: 10
giá bán: $5-7
Detail Information
Nguồn gốc:
Jiangsu, Trung Quốc
Xếp hạng chính xác:
P0
Loại con dấu:
Không niêm phong
Kiểu:
Sprag
Độ cứng bề mặt:
HRC60-62
Dòng số:
Hàng kép
Vật liệu:
GCR15
Đường kính bên trong:
40 mm
Đường kính ngoài:
48 mm
Công suất mô -men xoắn:
235nm
Tốc độ chạy không tải:
2.500 vòng / phút
kết cấu:
FE Series Freeheelclutches
Tiếp xúc ma sát:
Một hướng
Hướng không hoạt động:
Theo hướng ngược lại
Mẫu có sẵn:
chấp nhận
Thời gian giao hàng:
5-7 ngày
Làm nổi bật:

40x48mm sprag clutch freewheel

,

HRC60-62 one way bearing

,

FE448Z freewheel clutch bearing

Product Description
FE448Z Bearing One Way Sprag Cage Freewheels Overrunning Clutch FE 448 Z
Product Description

Sprag cage freewheels designed for one-direction torque transmission with idling capability in the opposite direction.

Key Specifications
  • Material: Chrome Steel GCr15
  • Structure: FE series Freewheel clutches
  • Applications: Indexing, backstop, overrunning
  • Samples: Available upon request
  • Delivery Time: 5-7 days after order confirmation
  • Packaging: Wooden box, carton or customized
  • Payment Terms: TT, L/C, D/A, D/P, Western Union, Paypal
Product Selection Guide
FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 0
Technical Specifications
Dimensions [mm] FE 400 FE 400 Z FE 400 Z2 Idling speed Clutch
dL | DL Part Number Torque M [N.m] Part Number Torque M [N.m] Part Number Torque M [N.m] nmax [RPM]
2 | 10 FE 410 Z2 0.3 10,000
Product Images
FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 1 FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 2 FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 3 FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 4
Manufacturer Information
FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 5

Changzhou Suma Precision Machinery Co., Ltd is a specialized manufacturer producing various one way bearings, clutches, and needle roller bearings with high technology.

Production Process
FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 6 FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 7
Certifications
FE448Z Sprag Cage Freewheel Clutch 40x48mm HRC60-62 8
Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

Samples are available for quality inspection and highly encouraged.

Can you promise to deliver the goods in time?

Small items: In stock

Medium Items: 10-15 Days

Big items: 20-25 Days
